上海・デイサム・サイエンス・インストゥルメント・アンド・エquipment (株)
| 起源の場所: | 中国上海 |
|---|---|
| ブランド名: | Daesum |
| 最小注文数量: | 1 |
| 価格: | $30,000-50,000 |
| 機械容量: | 35BPH、50BPH | 電圧: | 380V 50Hz |
|---|---|---|---|
| 充填精度: | ±0.2％fs | 充填能力: | 35-50ドラム/時 |
| 分割値: | 100g | 周囲温度: | -10℃〜55℃ |
| 元プルーフレベル: | D2BT4 | 保護レベル: | IP55よりも優れています |
| 製品温度: | 270以下℃ | 空気供給圧力: | 0.4-0.6MPA |
| 製品供給圧力: | 0.5-1MPA | 重さ: | 1000 kg |
| 駆動型タイプ: | 電気 | コアコンポーネント: | モーター、PLC、ギア、ベアリング、ギアボックス、エンジン、充填ノズル |
| 計量台の高さ: | 10cm | ||
| ハイライト: | Visual Positioning Pallet Filling Machine,Stainless Steel S304 Filling Machine,High Temperature Endurance Drum Filling Machine |
||

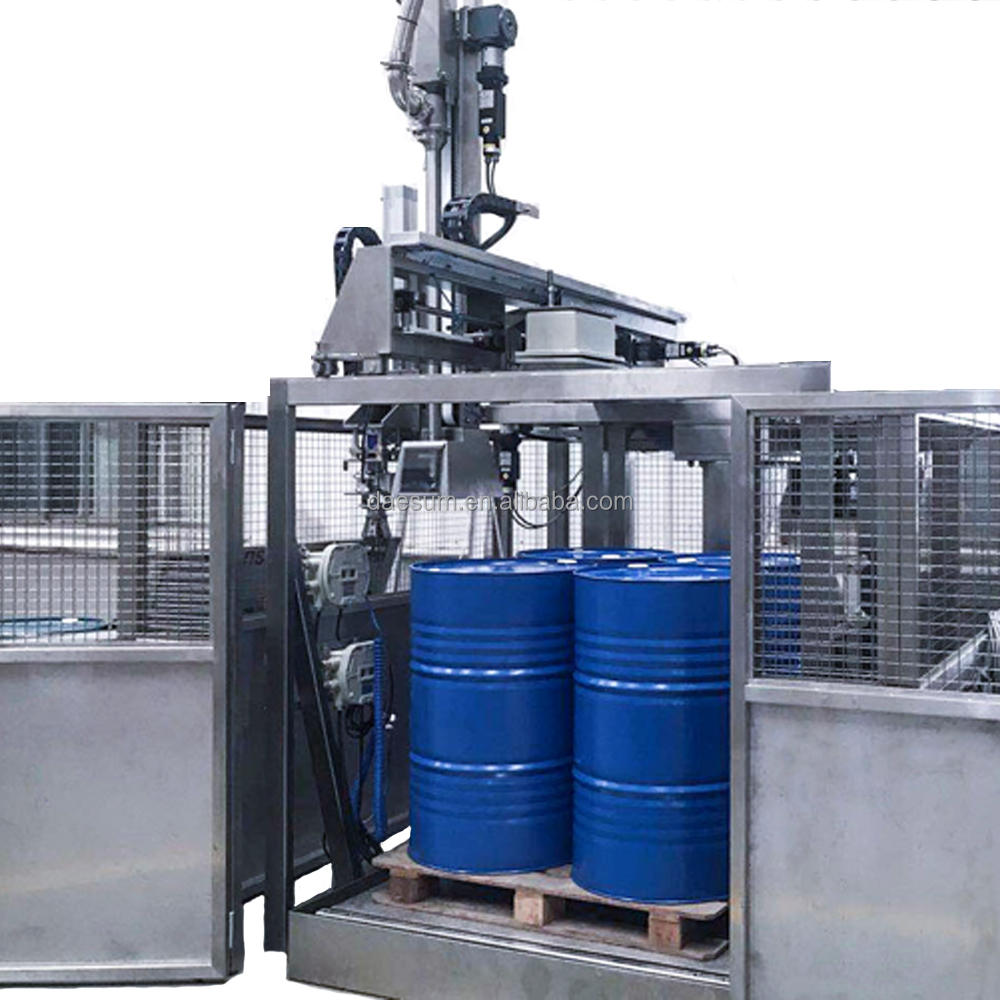

The GZ200*4-1BS pallet type below-bunghole fully automatic filling machine features visual bunghole positioning, automatic cap releasing, automatic capping, and automatic filling capabilities. Designed for chemical products in drums ranging from 40L to 1000L.
Includes 4 roller conveyors: empty drum infeed, weighing, filled drum outfeed, and filled drum wait-shovel. Powered roller conveyors feature ex-proof motors and reduction gears with low 10cm profile for safe operation.
Palletizing System: Automatically transfers completed drums to pallets two at a time, with automatic pallet magazine for continuous operation.
Guangdong Qingyuan Company (2018): Installed 3 automatic visual positioning filling lines that have operated continuously without mechanical or safety issues, creating significant annual value.
